  • 2A PRO Gas Block drilling Jig A (0.750 Vltor/BCM/Old Ranier)

    $110.00
    There are only 2 items left in stock.

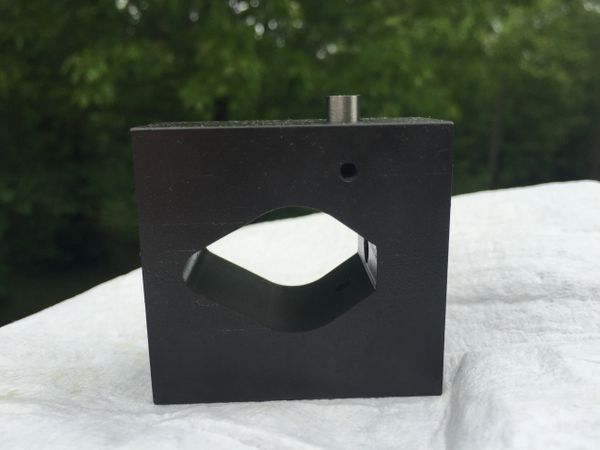

    The BRDE gas block PRO drilling jig A is used to drill Vltor, BCM and Older Rainier Arms 0.750" bore gas blocks for pinning.


    NOTE: There may maybe a 5 day delay in shipping for fabrication but we typically have these on hand.

    Dimensions of opening:

    OAH - 1.345", OD at Barrel 0.915, OD at gas tube hole 0.300, Bottom 0.325" wide

    Specs:
    Cold rolled carbon steel
    Waterjet and CNC machined opening
    Manganese Phosphate finish
    #31 drill hole, 1 side with replaceable hardened insert
    Includes 1/4"-28tpi x 3/8" soft point set screw
    Includes one #31 jobber drill bit and 1/8" hex key



    Please email me for PDF instructions.
